biodegradable 3 compartment takeaway food containers transparent plastic food container with lids making machine

Processing Type : Plastic Thermoforming Machine

Plastic Type : PS, BOPS, PP, EPS, PET

Max.Forming Height(mm) : 80 mm

Forming Width (mm) : 780 mm

Forming Length (mm) : 300 mm

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Air Pressure(MPa) : 0.8 MPa

Sheet Thickness(mm) : 0.2 - 2.5 mm

Heating Power (kW) : 40 kW

Air Comsumption(L/min) : 1.5 L/min

Water Comsumption(L/min) : 0.01 L/min

Condition : New

Place of Origin : Shandong, China

Brand Name : DEYI

Voltage : 380V/50HZ

Dimension(L*W*H) : L7500*W2000*H2000 mm

Weight (T) : 7 T

Warranty : 1 Year

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Key Selling Points : Famous brand PLC

Showroom Location : United Kingdom, United States, UAE

Control : PLC touch screen

Servo motor : Double servo

Gear box : Helical gear

Drive : Hydraulic transmission

Finished Products : Lunch Food Box

Suitable material : PP PET PVC PS PLA

Forming Area : customized

Color : Customized Color

After-sales Service Provided : Engineers

Feeding method : Automatic Feeding

Packaging Details : Standard export packaging

Supply Ability : 1000 Set/Sets per Year

Price : $55,000.00/sets 1-1 sets

Contact Now

Products Description

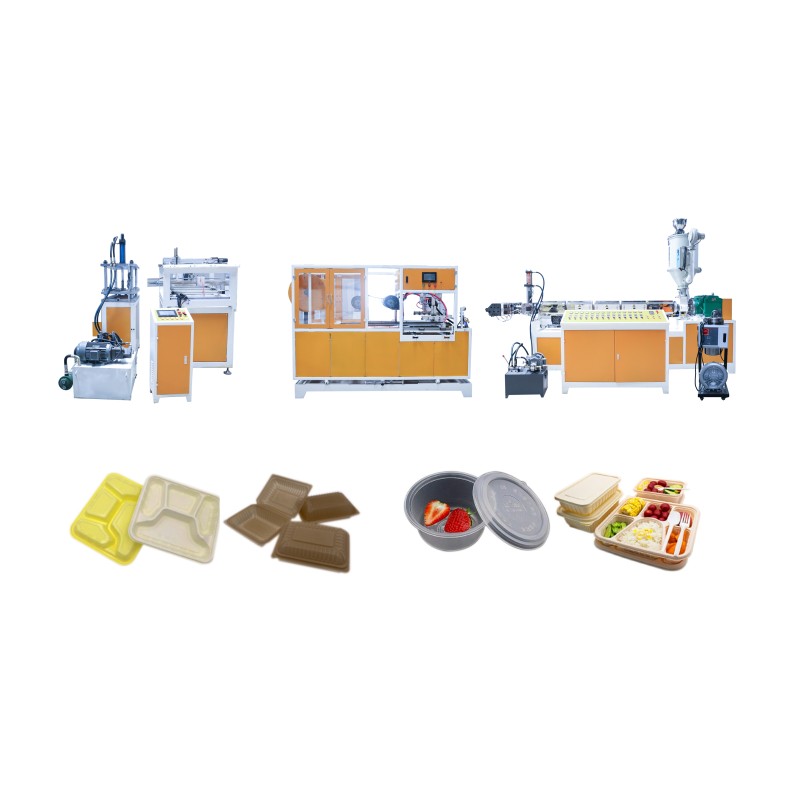

1. One-Step Degradable Tableware Forming Machine

One-step degradable tableware forming machine will make the finished granules form tableware through heating, This machine is the latest core product developed by our company, integrated, punching, cutting, and stacking. It has a wide range of uses and is suitable for most customers' requirements. It can produce degradable bowls, plates, various fast food boxes, packing boxes, supermarket trays, moon cake boxes, tofu boxes, biscuit boxes, etc. Stable operation, low noise, high efficiency and good quality.

biodegradable 3 compartment takeaway food containers transparent plastic food container with lids making machine

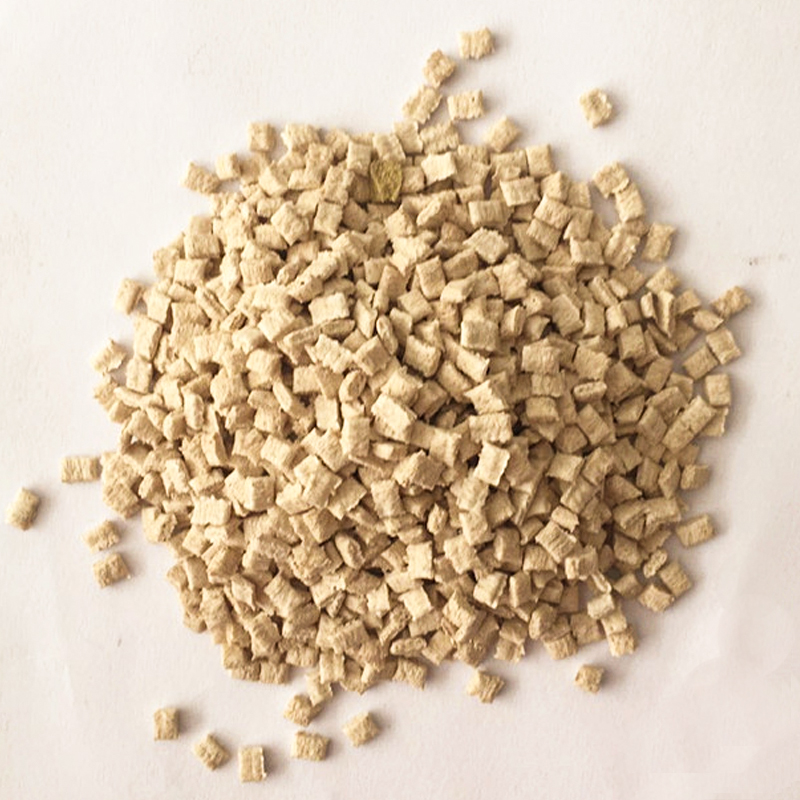

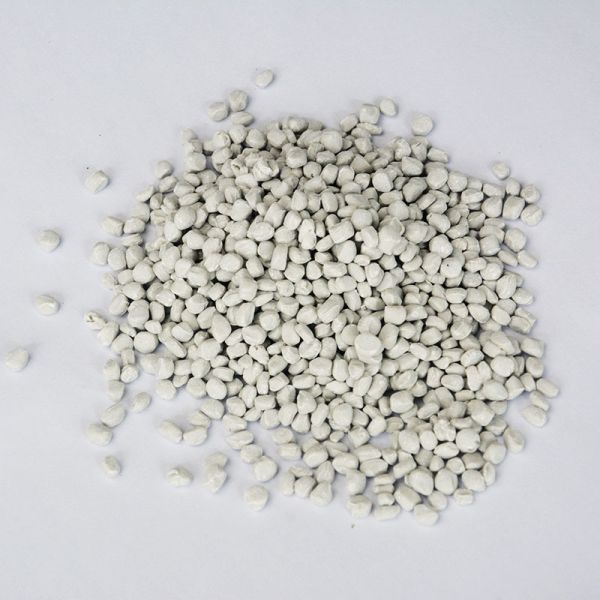

Precessing Raw Material Available

Biodegradable PBAT

Talcum Master Batch

Grain Filber

Color Master

Calcium Carbonate

Wheat Straw

Bombo Filber

PLA

Bagasse

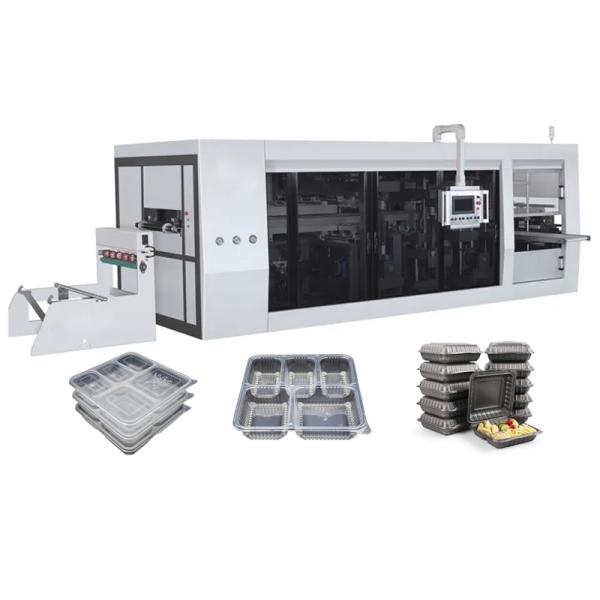

2. Multi Station Forming Machine

The multi-station thermoforming machine is a new machine developed by our company in response to market demands. This multi-station automatic machine is designed to synchronize forming, punching, and cutting processes, facilitating the efficient production of end plastic products. This innovation leads to a significant reduction in labor input and production costs, while greatly enhancing work efficiency. The machine is versatile, suitable for applications in various industries, including metal, food, medicine, cosmetics, and other PS/PET/PVC plastic products.

Item	Parameter
Suitable Material	PS、PET、PP、PVC and ETC
Suitable Sheet Thickness	0.1-2.5mm
Suitable Sheet Width	360~720mm
Max. Forming Area	700×600mm
Max. Cutting Area	580×580mm
Max. Forming Depth	≤±120mm
Max. Cycle without Loading	≤45/min
Heating Capacity	140kw
Motor of Forming Unit	4.5kw×2 sets
Motor of Trimming Unit	7.5kw×2 sets
Mold Locking Force of Forming Unit	20 Tons
Max. Cutting Force	60 Tons
Power Input	380V/50HZ or customized (3 phases 4 wires)
Working Pressure	0.6-0.9Mpa
Air Consumption	5200～6000 L/min
Water Consumption	80 L/min
Weight	14T

3. PP Cup/Bowl Thermoforming Machine

The Plastic Cup Thermoforming Machine represents our latest developed product. The sheet feeding and stretching components are driven by servo motors, ensuring precision and efficiency. This machine is specifically designed for the production of disposable items, including plastic cups, bowls, lids, and boxes. The workflow involves sheet feeding, heating, forming, cutting, and blowing, making it highly versatile and suitable for a wide range of customer needs. With a PLC for programming and a user-friendly manual interface for operation, the machine offers stability, low noise operation, and high efficiency.

Power Supply	380V/3P/50HZ
Material	PP/PS/PET/PVC plastic thermoforming sheet
Driving Method	Cam + Air cylinder
Forming Speed	<=32cycles/min (Forming depth<=130mm)
Sheet Width	W=720mm (adjustable)
Air Pressure	0.6~0.8Mpa
Air Consumption	2200L/min
Air Compressor Exhausting Capacity	2200~3000L/min
Water Consumption	<=0.5m3
Machine Dimension	3.3×1.4×2.2m
Electrical Consumption	Approx. 45KW

Recommended Products

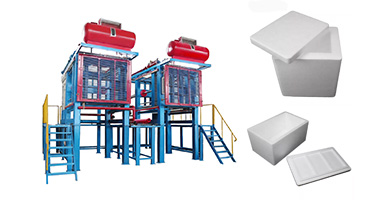

EPS shape moulding machine

make eps foam box and plate

PS foam food box machine

make foam box, dish, egg tray

Our Advantage

1. Low cost for starting: Each production line is equipped with the necessary equipment for the production of products: plate extruder, molding machine, automatic hydraulic punch, blender, grinder, custom mold and a punch knife. 2. Low energy consumption: The plate extruder can directly complete the forming and punching of products. The product does not need secondary heating. 3. Can process various materials: PP and calcium, rice shell, bamboo, talcum, starch, rice straw, bamboo and other plant fibers and so on 4. Adapt Plastic Free Material: PLA, PBAT etc. 5. Various production specifications: By changing the mold, we can produce lunch boxes, food containers, flip boxes, market trays, food trays, bowls, plates, etc. All our molds can be customized according to customer needs. 6. Highly automated and Easy to operate: Two workers are able to operate the full line each shift. One worker is for packing and the other is for side material re-usage. 7. All materials can be recycled: Side materials can be crushed and reused. And there is no gas pollution and no water pollution in the production process. 8. Durable and stable operation: The machine can run all day without any problems. Only basic maintenance is required.

FAQ

Q:Are you a supplier or a manufacturer?
A:We are a very experienced manufacturer. We are Longkou Deyi mechanical equipment Co, Ltd.located in Yantai City, Shandong Province with more than 30 years of foreign trade experience.

Q:Can your equipment meet our specified requirements?
A:Absolutely. We will change the relevant parameters of the equipment according to your requirements, so as to better meet the production requirements of your factory.

Q:How to guarantee quality to customers?
A:We have very strict product quality control links. The quality inspector is a very strict and responsible person. It will
certainly ensure the quality of the equipment.

Q:What payment terms can we use to complete the transaction on time?
A:FOB,CIF,CFR EXW ,etc. 30% before production 70% before shipment, We prefer 100%T/T but also accept L/D ,our machine can be delivered within 30-40 work days per unit. If you want to expedite it we will try our best short of our delivery time.
